LBZ-LW High Speed Paper Plate Forming Machine

Brief Introduce :

LBZ-LW High Speed Paper Plate Forming Machine is developed and designed as the requirement of market. It is pneumatic type automatic paper dish forming machine with owned unique illtellectual property right, which has functions as automatic paper feeding, forming, dish ejecting, temperature constant controlling, automatic counting, fast working speed, safe operation and easy maintenance, etc.
This machine have two working station, two molds installed in the machine, you can produce two sizes paper plates in the same time or let the two molds the same to get double speed. Air compressor is demonded in this machine to offer the air pressure.

Main Technical Data:

adopts high efficient pressure cylinder, The max pressure is up to 5T. Compared with oil pressure, it has advantages of high speed,environment protection,and humanism design.
Widely applied to produce paper plate or aluminium foil plate, round or square plate with different specification and shapes.
Diameter of paper plates: 5--12 inch
Row material: Raw paper, Cardboard or black-board paper
Suitable paper weight: 150--800 gsm (Recommend 250-450 gsm)
Speed of making paper plates: 65--80 pcs per minute(per working station)
Total power: 3 KW
Power source: 220 V50 HZ,60 HZ or other needed
Whole machine weight: 500 kg
Appearance size(L x W x H): 1450 x 1200 x 1900 mm

LBZ-LW High Speed Paper Plate Forming Machine

Brief Introduce :

Main Technical Data:

Cylinder Technical Data:

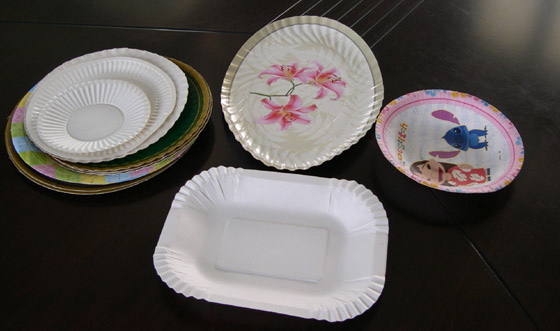

Paper Plates Samples Show:
